Product Description
Super Strong Sintered NdFeB Disc Magnet
For as-pressed material, tolerance on the thickness (direction of magnetization) is +/– .005". Other dimensions are +/– 2.5% or +/– .005", whichever is greater.According to International Magnetics Association/Magnet Materials Producers Association (IMA/MMPA) standards, visual imperfections such as hairline cracks, porosity and minor chips are commonly found in sintered magnets. A chipped edge is considered acceptable if no more than 10% of the surface is missing. Cracks are acceptable as long as they do not extend across more than 50% of the pole`s surface.
The maximum application temperature is 200 °C for high coercivity grades. Nd-Fe-B magnets are more prone to oxidation than any other magnet alloys. If Nd-Fe-B magnet is to be exposed to humidity, chemically aggressive media such as acids, alkaline solutions salts and harmful gases, coating is recommended. It is not recommended in a hydrogen atmosphere.

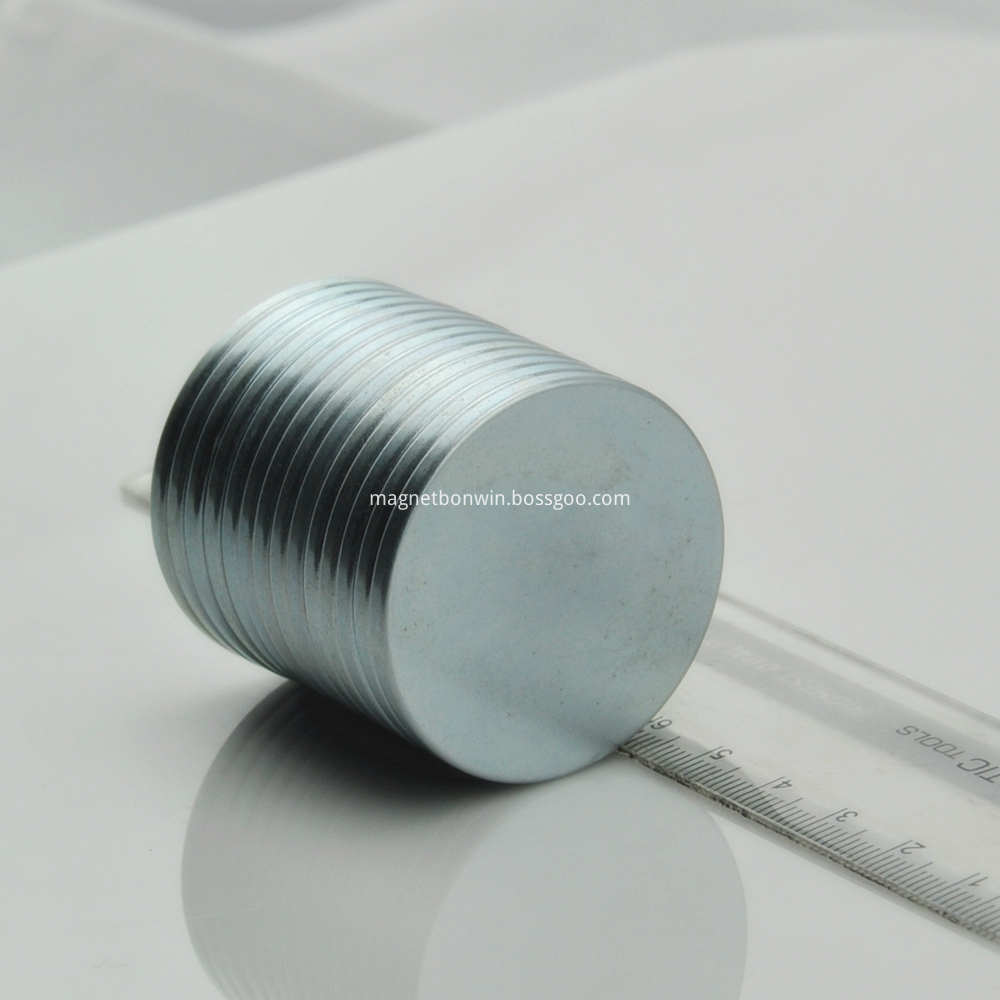

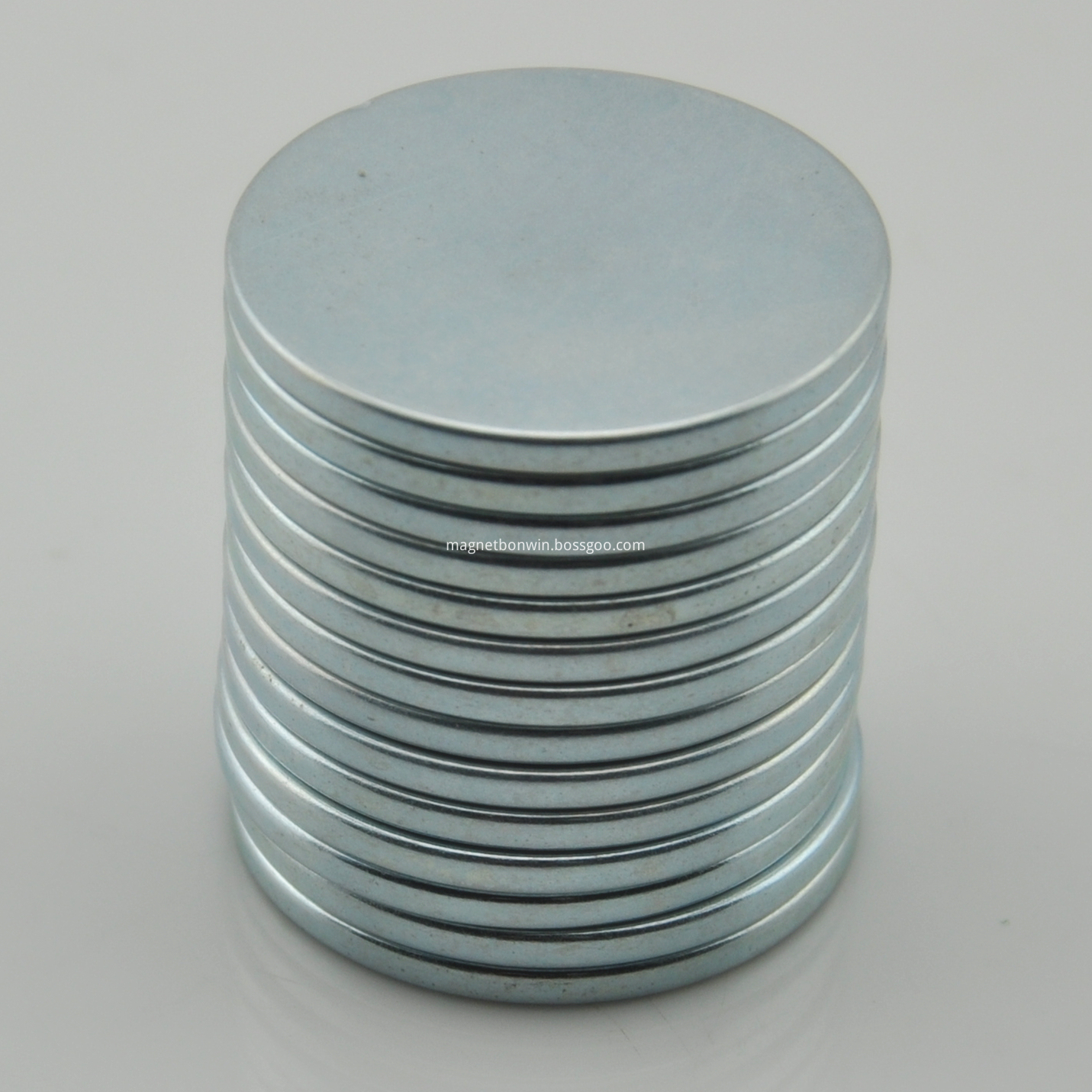

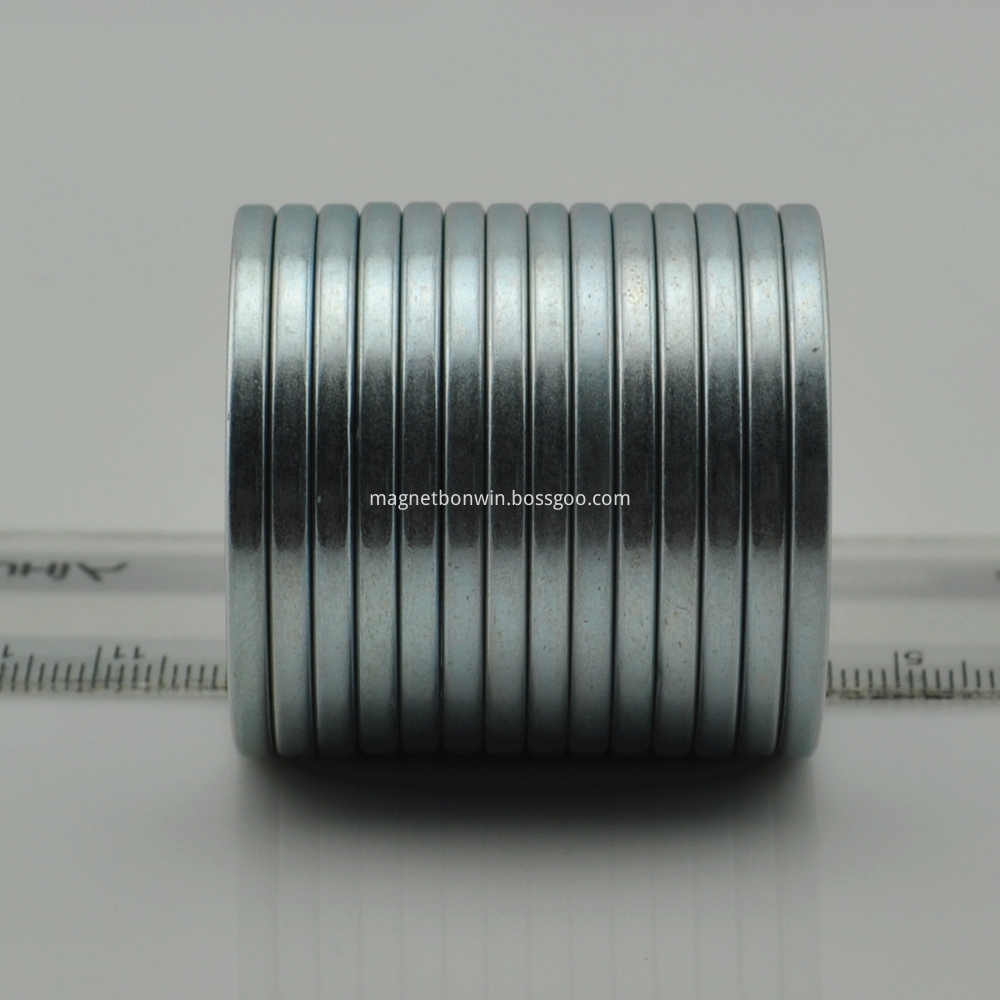

More round magnets photo details:
|
Material
|
NdfeB
|
|
Grade
|
N35
|
|
Diameter
|
40mm
|
|
Thickness
|
3mm
|
Magnetizing Direction
|
Axial Magnetization(Thickness)
|
Plating Coating
|
Zinc
|
|
Magnet Weight
|
30g
|
