Rare Earth Disc Permanent NdFeB Magnet

Basic Info

Model No.: Round magnet

Application: Speaker Magnet, Industrial Magnet, Motor Magnet

Coating: Nickel

Grade: N42

Shape: Round

Max Operating Temperature: 80℃

Additional Info

Packaging: Carton box size: 35cm*25cm*15cm

Productivity: 50000pcs/month

Transportation: Ocean,Land,Air

Place of Origin: NINGBO/CHINA

Supply Ability: 50000pcs/month

Certificate: ISO 9001:2008

HS Code: 85051110

Port: Ningbo,Shanghai

Product Description

Rare Earth Disc Permanent NdFeB Magnet

Since neodymium magnet material is prone to chipping and cracking, it does not lend itself to conventional machining methods. However, neodymium can be abrasively ground, but only with the use of liberal amounts of coolant. The coolant minimizes heat fracturing and the risk of fires caused by oxidized grinding dust.

A powder metallurgy process is used in producing sintered Neodymium magnets. Although sintered Neodymium is mechanically stronger than Samarium Cobalt magnets and less brittle than other magnets, it should not be used as a structural component. Selection of Nd-Fe-B is limited by temperature due to its irreversible loss and moderately high reversible temperature coefficient of Br and Hci.

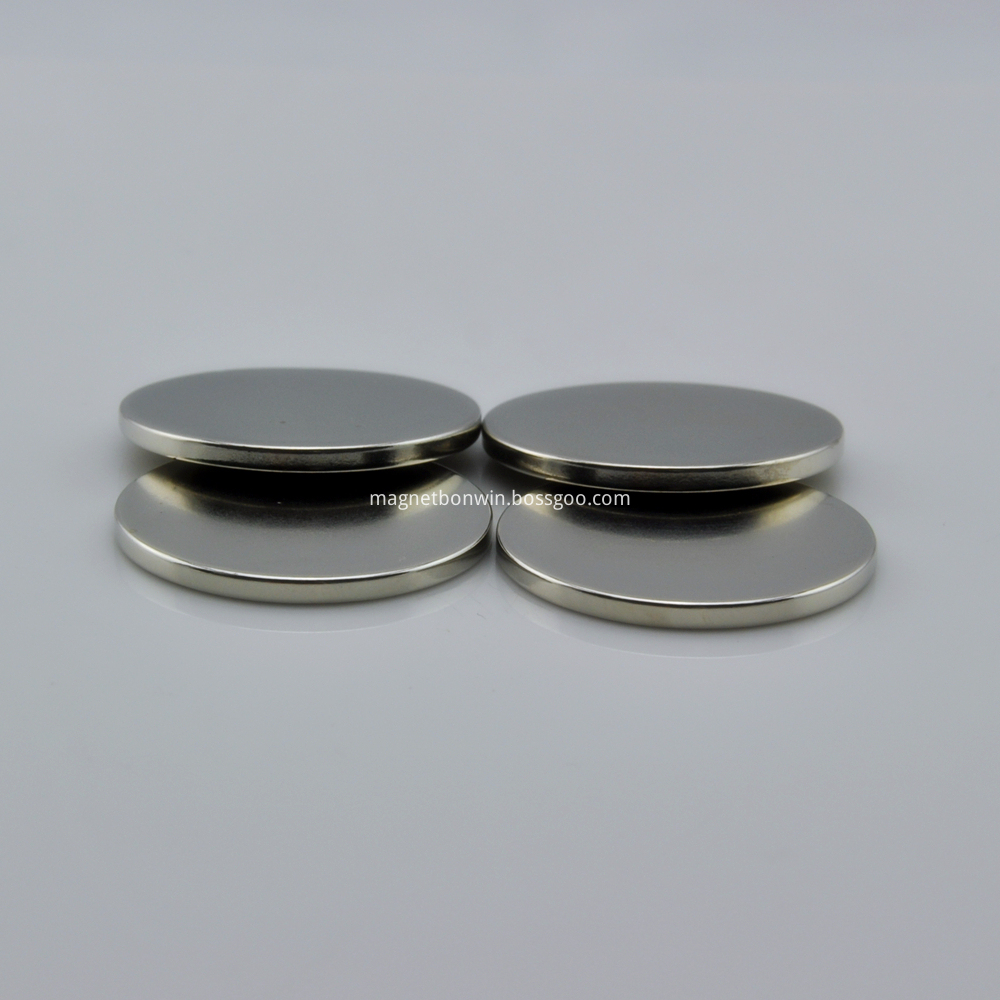

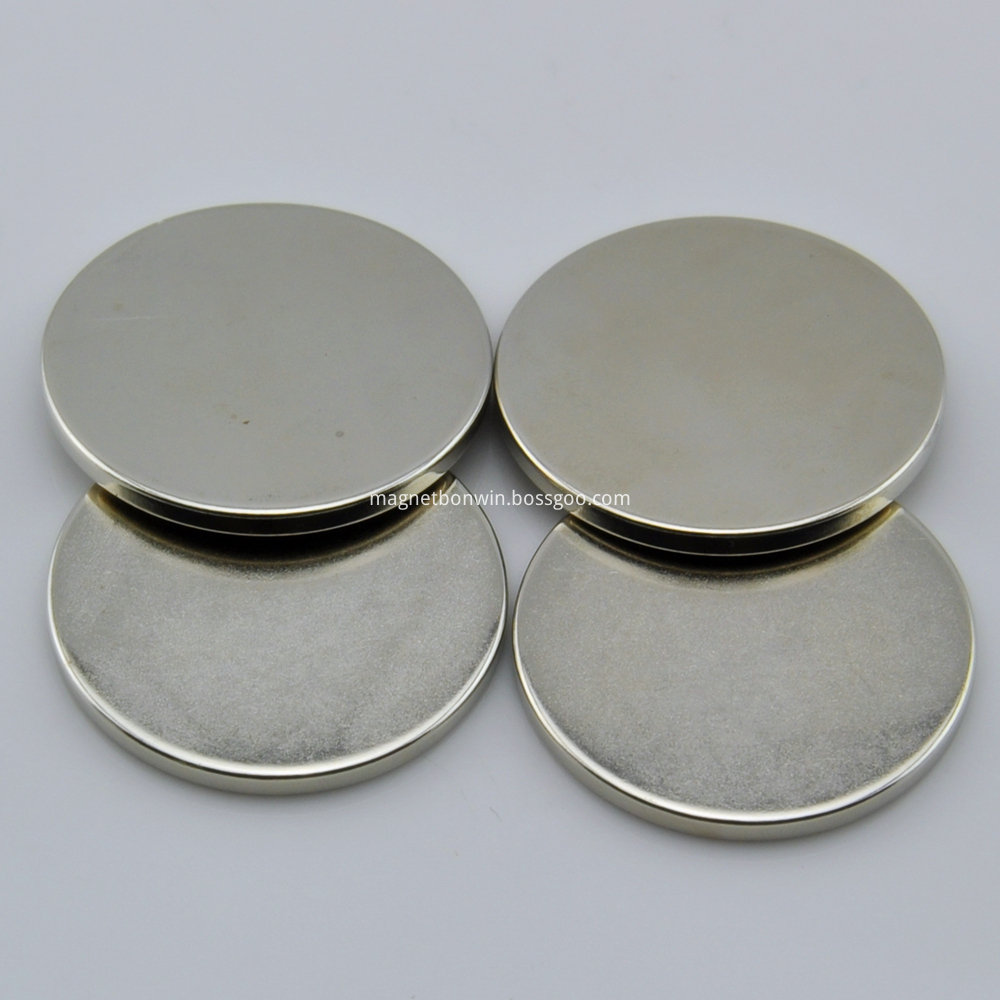

More round magnets photo details:
