Product Description

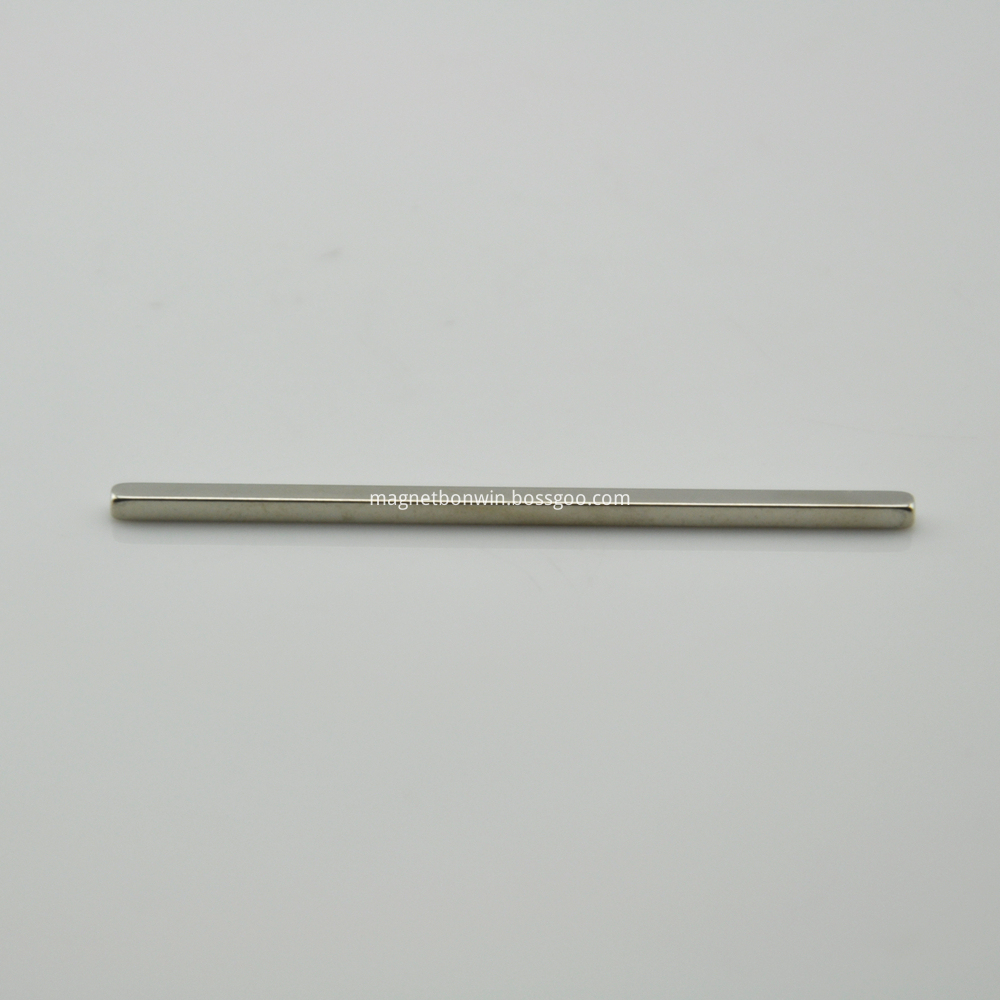

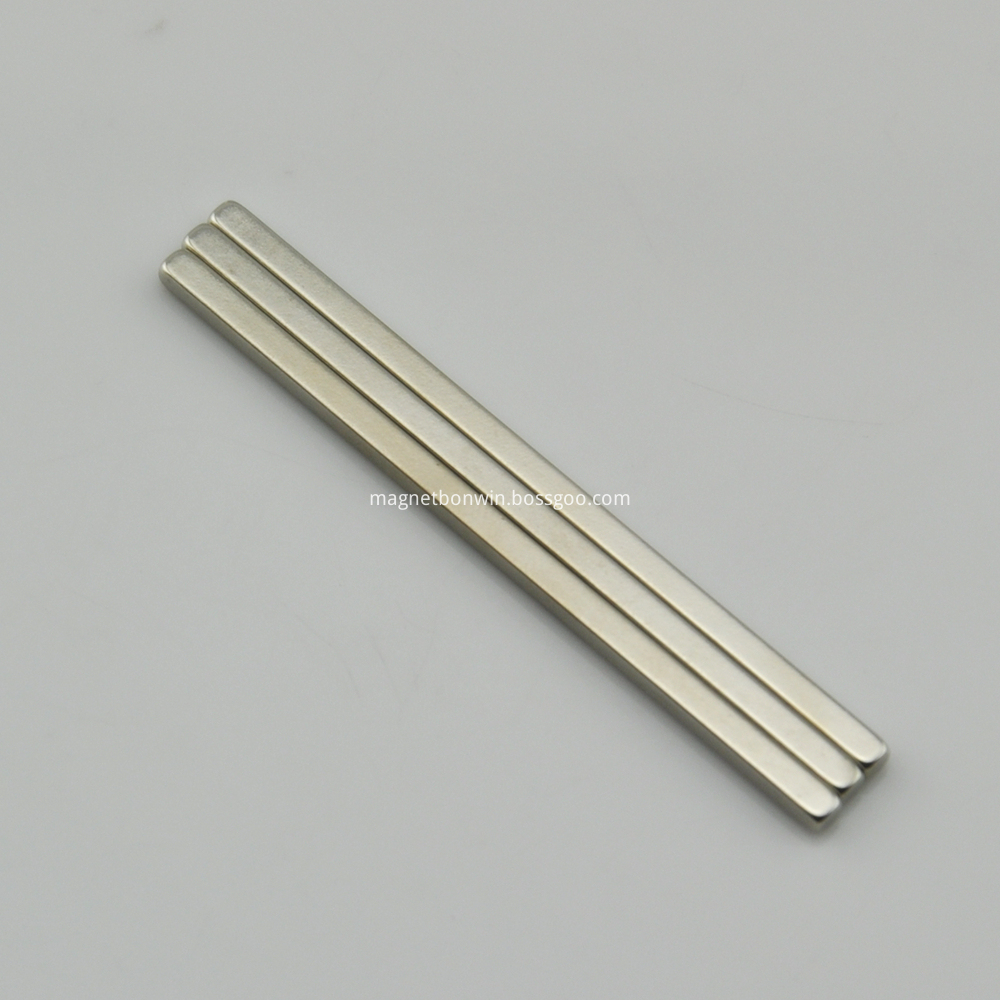

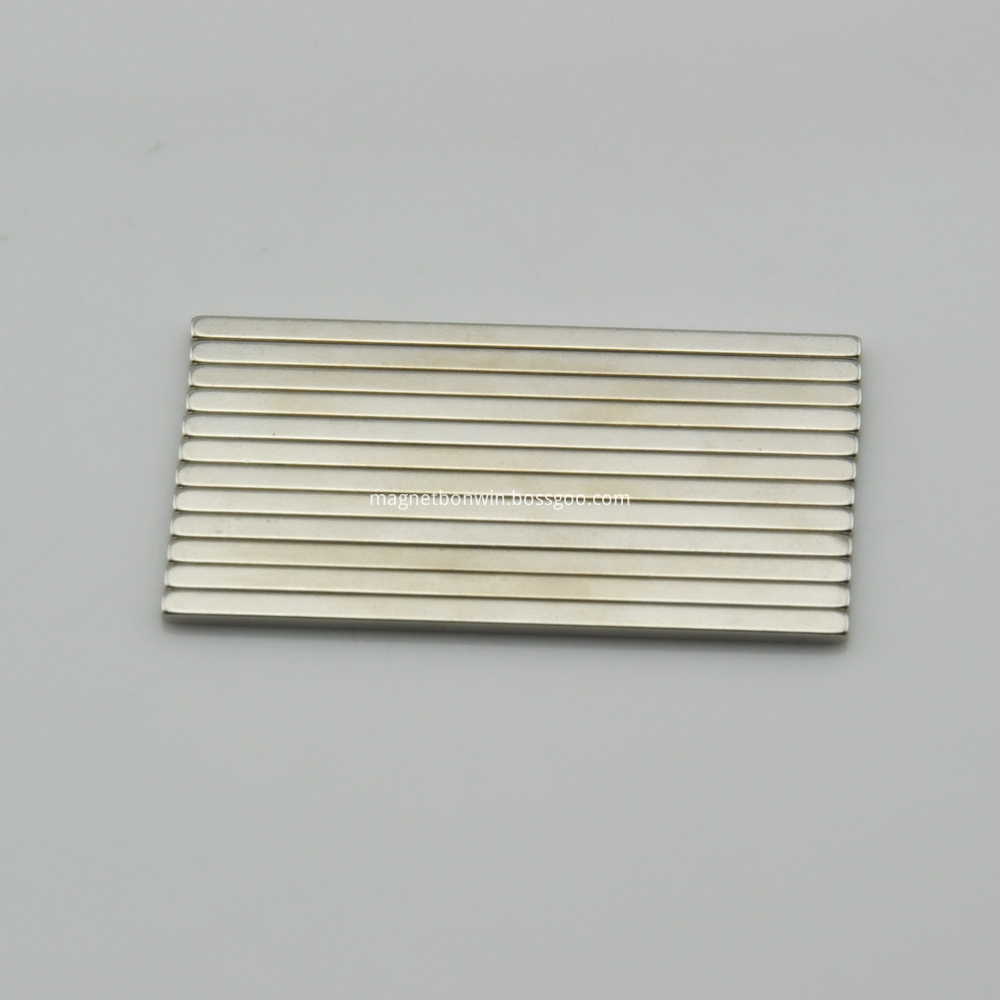

N35 Ndfeb neo rare earth bar magnets
Sintered Rare Earth Neodymium Magnet mainly comprised of neodymium, iron and boron, is the third generation of the rare-earth permanent magnets. Sintered Ndfeb is the strongest permanent magnets in the world up to date. It has excellent properties of high remanence,coercivity, and Max. energy product. Sintered Neodymium Magnet grade N35, N38, N40, N42, N45, N48, N50, N52(Max. Operational temperature: 80c) ; N35M, N38M, N40M, N42M, N45M, N48M(Max. Operational temperature: 100c); N35H, N38H, N40H, N42H, N45H, N48H, (Max. Operational temperature: 120C); N33SH, N35SH, N38SH, N40SH, N42SH(Max. Operational temperature: 150c) ; N28UH, N30UH, N33UH, N35UH, N38UH(Max. Operational temperature: Up to 180c); N28EH, N30EH, N33EH, N35EH(Max. Operational temperature: Up to 200c) ; N30AH, N33AH, N35AH(Max. Operational temperature: Up to 230c).
Common Applications: Sensors, Linear actuators, Microphone assemblies, Magnetic separators, AC DC and servo motors, Speakers, Printers, Computer disc drives, Intelligent toys, MRI/NMR.
Ndfeb neo rare earth bar magnet more details as below:
|
Material
|
NdfeB
|
|
Grade
|
N35
|
|
Length
|
72mm
|
|
width
|
3mm
|
|
Thickness
|
2.5mm
|
|
Magnetizing Direction
|
Axial Magnetization (Thickness)
|
|
Plating Coating
|
Nickel
|
|
Magnet Weight
|
4.2g
|
Neo rare earth bar magnet More Details:
